Khoom Taw Qhia

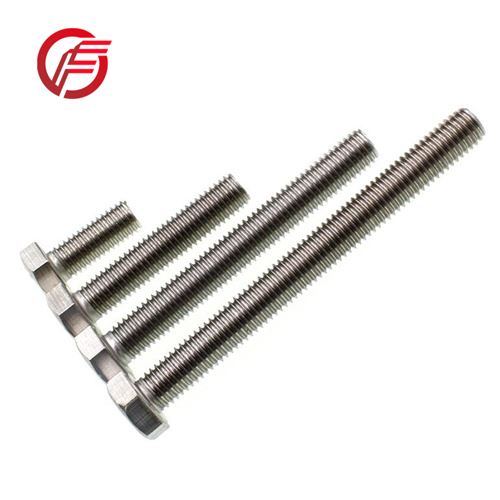

1. M8 titanium boltsyog ib hom titanium fasteners, uas yog siv rau qee qhov kev sib txuas ib ntus thiab kev sib txuas kom raug tshem tawm qhov chaw.
2. cov ntaub ntawv yooj yim
Qib: Gr2 Gr4 Gr5 Gr12 thiab lwm yam.
Loj: M1.6 ~ M52
Txheem: DIN933 thiab lwm yam
Ti bolts 'cov yam ntxwv tseem ceeb yog cov xim sib txawv, lub zog siab, lub teeb yuag, siab kub tsis kam, corrosion kuj, thiab kev ua haujlwm kub tsis zoo.
Qhia nthuav dav
bolts titanium
m8 titanium bolts nqi
3. Titanium bolt daim ntaub ntawv: electroplating, aluminium oxidation (anodic decomposition), tshuaj lom neeg kev lag luam.
4. Gr2 Gr4m8 titanium boltsFeem ntau yog siv los ua electroplating disk khib fixture qhov chaw, lwm qhov ntau thiab tsawg kuj tuaj yeem tsim thiab siv hauv kev lag luam sib txawv xws li cov cuab yeej siv tshuaj lom neeg, yas, tshuaj, thiab lwm yam lag luam.
Gr4 m8 titanium bolts
M8x55 titanium ntsia liaj qhov rooj
5. Muaj ob hom titanium ntsia hlau ua: txias taub hau thiab machining
Tshuab dhosM8 titanium boltsfeem ntau yog tsim nrog GR5 titanium. Qhov laj thawj tseem ceeb yog qhov titanium alloy no muaj zog hardness thiab zoo txhua yam khoom, uas yog tsim nyog rau machining. Lub taub hau txias yog tsim los ntawm ntuj tsim, yog li nws yuav tsum tau ua kom cov khoom yuav tsum tsis txhob nyuaj dhau. Gr2 titanium yog tsim nyog nyob rau hauv titanium. Gr2 titanium feem ntau hu ua ntshiab titanium. Gr2 titanium muaj kev ntxhib los mos. Ntawm 350 degree, lub zog ntev rau 100hours yog ntau tshaj 400MPa, thiab cov txheej txheem kub muaj cov yas zoo.
6. M8 hex titanium ntsia liaj qhov rooj loj raws li DIN933
| Nominal Dia | M8 | ||
| P | Suab | 1.25 | |
| a | max | 3.75 | |
| c | min | 0.15 | |
| max | 0.6 | ||
| da | max | 9.2 | |
| dw ua | Qib A | min | 11.6 |
| Qib B | min | 11.4 | |
| e | Qib A | min | 14.38 |
| Qib B | min | 14.2 | |
| k | Nominal Loj | 5.3 | |
| Qib A | min | 5.15 | |
| max | 5.45 | ||
| Qib B | min | 5.06 | |
| max | 5.54 | ||
| k1 | min | 3.54 | |
| r | min | 0.4 | |
| s | max =nominal loj | 13 | |
| Qib A | min | 12.73 | |
| Qib B | min | 12.57 | |
